Bitumenflex - Onshore

Regulations

  • EN 13482
EN 13482:2001 Type 2 Class A.
Onshore
/ Onshore /

Bitumenflex

Asphalt and tar hose, wire reinforced

Highlights

Reinforcement with metallic fabrics
High temperature
Robust construction

Application

hardwall hose designed for the loading and unloading of hot asphalt and tar, used for dock service. Not suitable for SubMarine – Offshore Moorings applications.

Temperature

from -15°C (+5°F) to +175°C (+347°F).

Construction

Tube: black, smooth synthetic rubber.
Reinforcement: plies of steel wire cord and embedded steel helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering, ozone, abrasion, asphalt and oil resistant.
Branding: continuous yellow spiral brand: "IVG - EN 13482:2001 - Type 2 SB/A/I.D. - 15 bar - 175°C - quarter and year of production / ASPHALT and TAR.
Request information

I declare that I have read the privacy policy pursuant to EU Regulation 2016/679

Code Inside diameter Outside diameter Working pressure Burst pressure Weight nominal Bending radius Length max
mm inch mm inch bar psi bar psi kg/m lbs/ft mm inch m ft
1457004 102 4 131 5,16 15 225 90 1350 9,34 6,31 1000 39,4 60 200
1452932 152 6 195 7,68 15 225 90 1350 22,12 14,87 1500 59,1 12 40
1456636 203 8 252 9,93 15 225 90 1350 31,46 21,25 2000 78,8 12 40

You might also like

Marshall

Dock oil hose according to EN 1765 and BS 1435

Related couplings

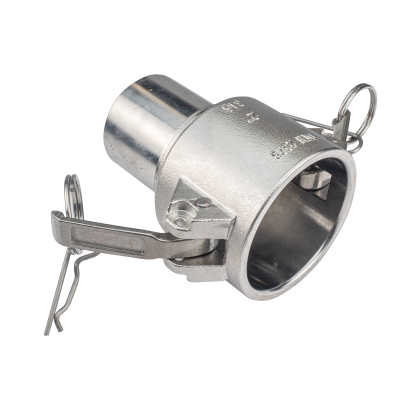

Camlock EN 14420-7 (DIN 2828)
