Volga fra

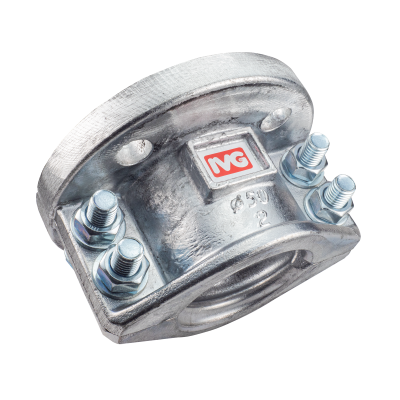

Bulk materials hose with over cover UNI PN 10 couplings easy to assemble
Highlights
Excellent abrasion resistance
Complete system with quick assembly fittings
Easy replacement
Application
hardwall, corrugated, suction and delivery hose for the transfer of a wide range of abrasive products mixed with water or only dust (sand, gravel, cement, seeds etc.). It can be cut and fitted in application lengths directly on the application site.
Temperature
from -40°C (-40°F) to +70°C (+158°F).
Construction
Tube: black, smooth, antistatic NR/SBR rubber which withstands the passage of abrasive materials.
Reinforcement: high strength synthetic cord, steel helix wire, and antistatic copper wire.
Cover: black, corrugated (wrapped finish), EPDM rubber, weathering and ozone resistant.
Reinforcement: high strength synthetic cord, steel helix wire, and antistatic copper wire.
Cover: black, corrugated (wrapped finish), EPDM rubber, weathering and ozone resistant.
Branding: continuous red stripe “IVG Abr (family logo)...”.
Available upon request
1.Brown, smooth NR tube for abrasive materials
2.White, smooth NR tube, suitable for liquid food products according to FDA-BfR
3.Black techno-polymer tube with an excellent resistance to chemicals and hot abrasive products (max 100°C).
| Code | Inside diameter | Outside diameter | Working pressure | Burst pressure | Weight nominal | Bending radius | Vacuum | Length max | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | bar | psi | bar | psi | kg/m | lbs/ft | mm | inch | bar | m | ft | |
| 1454919 | 51 | 2 | 83 | 3,27 | 10 | 150 | 30 | 450 | 3,75 | 2,52 | 250 | 9,9 | 0,9 | 60 | 200 |
| 1458361 | 65 | 2-9/16 | 96 | 3,78 | 10 | 150 | 30 | 450 | 4,53 | 3,04 | 325 | 12,8 | 0,9 | 60 | 200 |
| 1454889 | 80 | 3-5/32 | 112 | 4,41 | 10 | 150 | 30 | 450 | 5,84 | 3,92 | 400 | 15,8 | 0,9 | 60 | 200 |
| 1453726 | 100 | 4 | 132 | 5,20 | 10 | 150 | 30 | 450 | 6,86 | 4,61 | 500 | 19,7 | 0,9 | 60 | 200 |
| 1454897 | 125 | 5 | 157 | 6,19 | 10 | 150 | 30 | 450 | 8,43 | 5,67 | 650 | 25,6 | 0,9 | 60 | 200 |
| 1442449 | 150 | 6 | 182 | 7,17 | 10 | 150 | 30 | 450 | 11,5 | 7,73 | 750 | 29,6 | 0,9 | 60 | 200 |
| 1454927 | 200 | 8 | 233 | 9,18 | 10 | 150 | 30 | 450 | 14,78 | 9,93 | 1750 | 69,0 | 0,9 | 60 | 200 |
| 1454900 | 250 | 10 | 287 | 11,31 | 10 | 150 | 30 | 450 | 19,62 | 13,19 | 2000 | 78,8 | 0,9 | 12 | 40 |
| 1454935 | 300 | 11-13/16 | 340,5 | 13,42 | 10 | 150 | 30 | 450 | 26,53 | 17,83 | 2500 | 98,5 | 0,9 | 12 | 40 |
