Non fatty foods hose Vinoflex easy

Regulations

  • BfR
  • BPA free
  • D.M.21/03/73
  • FDA
  • Reg. CE 1907/2006 (REACH)
  • Reg. CE 1907/2006 (REACH)
  • Reg. CE 1907/2006 (REACH)
  • Reg. CE 1935/2004
  • Reg. CE 2023/2006
BfR XXI Cat.2 for foods  Bisphenol A free.  D.M. 21/03/73 aqueous and alcohol up to 96% vol.  FDA tit.21 art.177.2600 aqueous foods.

Phthalates free (REACH Reg.).

  Heavy metal tested.  PAHs free (acc. to ZEK 01.4-08 Cat. 1).  Reg. EC 1935/2004.  Reg. EC 2023/2006.
Food
/ Food /

Vinoflex easy

Non fatty foods. Thermoplastic cover. EASYSHELL SYSTEM

Highlights

Low coefficient of friction
EasyShell system
The best seller for wine

Application

hardwall corrugated hose, lightweight and flexible, for the suction and delivery of vintage wines and alcohols at 96°. Low friction cover.

Temperature

from -40°C (-40°F) to +120°C (+248°F).

Construction

Tube: white, smooth, food quality, taste free and odourless IIR rubber. Contains no phthalates.
Reinforcement: high strength synthetic cord plus steel helix wire.
Cover: red, corrugated, translucid thermoplastic material with low friction coefficient, weathering resistant.
Branding: continuous blues/white stripe “IVG Food...”.

Available upon request

1. Tube in NR rubber.
2. Cover in different colours.

Request information

I declare that I have read the privacy policy pursuant to EU Regulation 2016/679

Vinoflex_Easy_it.pdf
Vinoflex_Easy_en.pdf
Vinoflex_Easy_de.pdf
Vinoflex_Easy_fr.pdf
Vinoflex_Easy_ru.pdf
Vinoflex_Easy_cn.pdf
IVG_sd_CIP_it.pdfCIP_it.pdf
IVG_sd_cip-en.pdfcip-en.pdf
IVG_sd_CIP_ted.pdfCIP_ted.pdf
IVG_sd_CIP_fr.pdfCIP_fr.pdf
IVG_sd_CIP_cn.pdfCIP_cn.pdf
See all documents
Code Inside diameter Working pressure Burst pressure Weight nominal Bending radius Vacuum Length max
mm inch bar psi bar psi kg/m lbs/ft mm inch bar m ft
1443062 25 1 10 150 30 450 0,66 0,44 75 3,0 0,6 60 200
1443054 32 1-1/4 10 150 30 450 0,86 0,57 95 3,7 0,6 60 200
1443160 38 1-1/2 10 150 30 450 1,13 0,75 115 4,5 0,6 60 200
1455214 40 1-37/64 10 150 30 450 1,18 0,79 120 4,7 0,6 60 200
1443151 51 1-31/32 10 150 30 450 1,45 0,97 150 5,9 0,6 60 200
1452517 60 2-3/8 10 150 30 450 1,68 1,12 180 7,1 0,6 60 200
1451944 63,5 2-1/2 10 150 30 450 1,77 1,18 195 7,7 0,6 60 200
1450859 76 3 10 150 30 450 2,19 1,46 225 8,9 0,6 60 200
1452444 80 3-5/32 10 150 30 450 2,29 1,53 240 9,5 0,6 60 200
1452452 100 3-15/16 10 150 30 450 2,87 1,94 350 13,8 0,6 60 200

Useful documents

Important Advice
Chemical resistance chart
Thematic brochure
Technical information
Safety information

You might also like

Hose for non fatty foods Scotland LL

Scotland LL

Premium suction and delivery hose for non fatty foods

Related couplings

Camlock

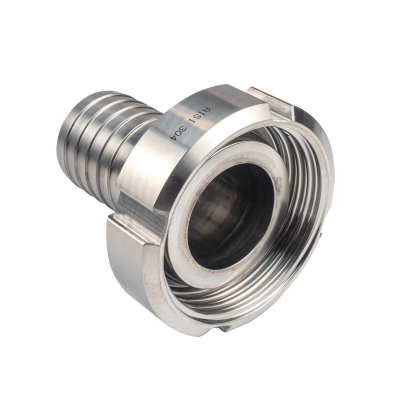

Food coupling DIN 11851

for food products

Camlock

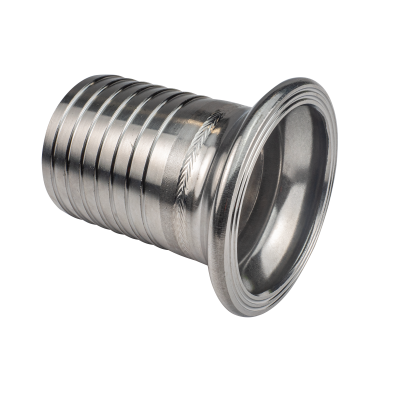

Garolla

for wine

Camlock

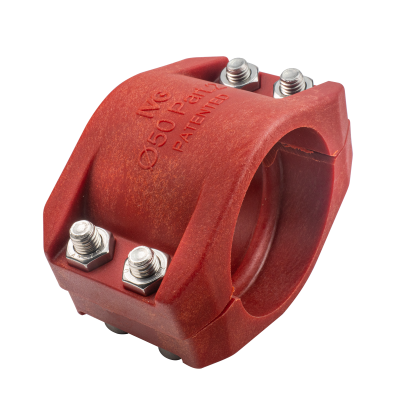

EasyShell clamps
